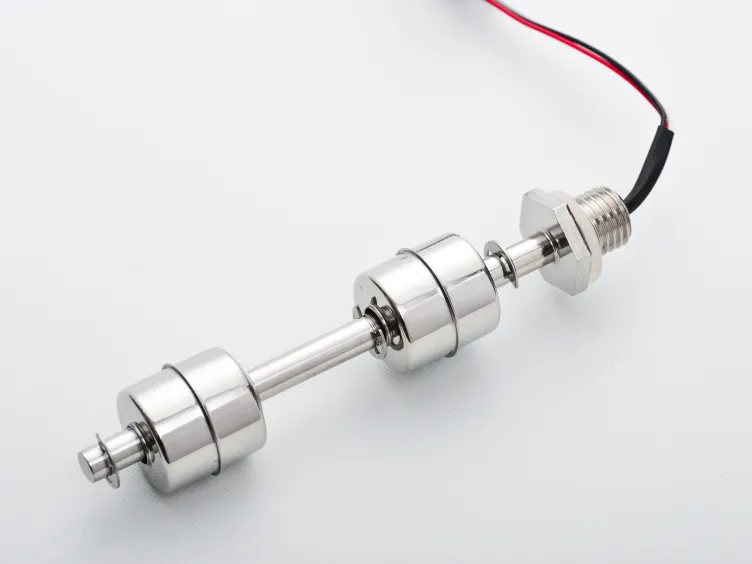

Z1S-GMF-130SI | Liquid Level Switch

Z1S-GMF-130SI | Liquid Level Switch

M10*1.5 Thread | SUS 304/316L
In-tank Stem: 130mm(Customize available)
Activation: 1 to multiple point available | continuous level available.
Contact for customization.
Description Review
Description

Model NO.
Z1S-GMF-130SI
Contact Form
Form A
Contact Material
Ruthenium
Size
Medium
Certification
RoHS, ISO
Max. Switching Current
0.5A
Operating Temperature (ºC)
0-100
Min. Breakdown Voltage
150V
Stem Diamter
φ8
Thread
M16*2
Stem Under Water (mm)
130
E-Clip
SUS304 Natural
Max. Switching Voltage
100VDC
Max. Contact Rating. W
10w
Float Material
SUS304 Natural
Stem Material
SUS304 Natural
Trademark
GD
Transport Package
Carton
Origin
China
HS Code
8536500000


Click above "Contact us" button to tell us your requiremnet.


Below are selectable, contact with us if you have any query or customized requirement.
Thank you.

Housing SUS304 or SS316
Filling Epoxy
Contact form A, B or C type
Power 10W, 50W
Max switching current 0.5A. 1.5A. 1.5A, 0.7A
Max switching voltage 100Vdc, 200Vdc, 300, 350Vdc

Above parameter are selectable, and please contact with us if you have any specical requirement.
Thank you.

A type= NO= Normally Open=SPST= Single pole single throw
B type=NC= Normally Closed
C type=Chang over= SPDT= Single pole double throw

PP Float, form, injection, food contact, encapsulated magnet

Stainless Steel Float, SUS304, SUS316, and NBR float

Flow switch, Stainless steel, POM, G3/8", G1/2", G3/4", quick joint

Please feee free to contact with us if you have any specical requirement.
Thank you, and look forward to hear from you.
